KM732V589A - 32Kx32-Bit Synchronous Pipelined Burst SRAM

The KM732V589A/L is a 1,048,576-bit Synchronous Static Random Access Memory designed for high performance second level cache of Pentium and Power PC based System. It is organized as 32K words of 32bits and integrates address and control registers, a 2-bit burst address counter and added some new fun.

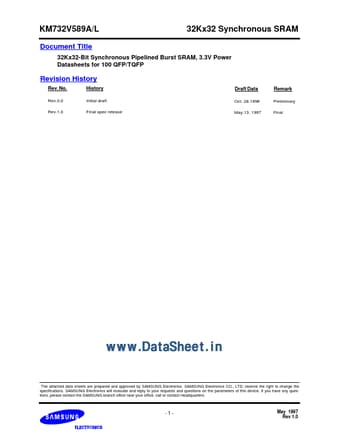

PRELIMINARY KM732V589A/L Document Title 32Kx32-Bit Synchronous Pipelined Burst SRAM, 3.3V Power Datasheets for 100 QFP/TQFP 32Kx32 Synchronous SRAM Revision History Rev. No. Rev.0.0 Rev.1.0 History Initial draft Final spec release Draft Data Oct. 28.1996 May.13. 1997 Remark Preliminary Final The attached data sheets are prepared and approved by SAMSUNG Electronics. SAMSUNG Electronics CO., LTD. reserve the right to change the specifications. SAMSUNG Electronics will evaluate and reply to y.

KM732V589A Features

* Synchronous Operation. 2 Stage Pipelined operation with 4 Burst. On-Chip Address Counter. Self-Timed Write Cycle. On-Chip Address
