K4S160822D

2Mx8 SDRAM 1M x 8bit x 2 Banks Synchronous DRAM LVTTL

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor TE Connectivity K4S160822D INSTOCK Chip 1 Exchange 1000 0
$0

K4S160822D Datasheet (1.16 MB)

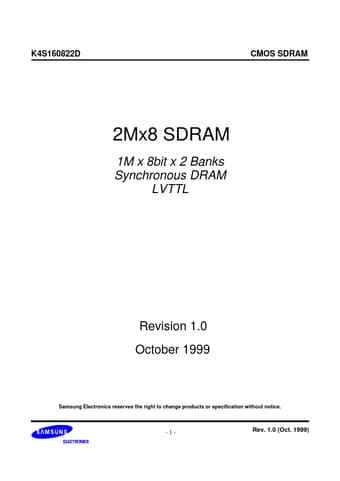

Preview of K4S160822D PDF Datasheet

Datasheet Details

Part number:

K4S160822D

Manufacturer:

Samsung semiconductor

File Size:

1.16 MB

Description:

2mx8 sdram 1m x 8bit x 2 banks synchronous dram lvttl

K4S160822D Features

* JEDEC standard 3.3V power supply LVTTL compatible with multiplexed address Dual banks operation MRS cycle with address key programs -. CAS latency ( 2 & 3) -. Burst length (1, 2, 4, 8 & Full page) -. Burst type (Sequential & Interleave) All inputs are sampled

K4S160822D General Description

The K4S160822D is 16,777,216 bits synchronous high data rate Dynamic RAM organized as 2 x 1,048,576 words by 8 bits, fabricated with SAMSUNG′s high performance CMOS technology. Synchronous design allows precise cycle control with the use of system clock I/O transactions are possible on every clock c.
