K4D261638K - 128Mbit GDDR SDRAM

Product Overview

Samsung

Datasheet Details

Part number	K4D261638K
Manufacturer	Samsung
File Size	383.16 KB
Description	128Mbit GDDR SDRAM
Datasheet	K4D261638K Datasheet

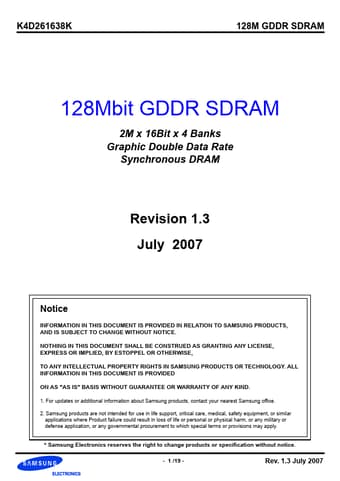

Additional preview pages of the K4D261638K datasheet.

Product details

Description

FOR 2M x 16Bit x 4 Bank DDR SDRAM The K4D261638K is 134,217,728 bits of hyper synchronous data rate Dynamic RAM organized as 4 x 2,097,152 words by 16 bits, fabricated with SAMSUNG’s high performance CMOS technology.Synchronous

Features

2.5V + 5% power supply for device operation.
2.5V + 5% power supply for I/O interface.
SSTL_2 compatible inputs/outputs.
4 banks operation.
MRS cycle with address key programs -. Read latency 2,3(clock) -. Burst length (2, 4 and 8) -. Burst type (sequential & interleave).
All inputs except data & DM are sampled at the positive going edge of the system clock.
Differential clock input.
Wrtie-Interrupted by Read Function.
