K4D261638K-LC50 - 128Mbit GDDR SDRAM

Product Overview

Samsung

Datasheet Details

Part number	K4D261638K-LC50
Manufacturer	Samsung
File Size	383.16 KB
Description	128Mbit GDDR SDRAM
Datasheet	K4D261638K-LC50 Datasheet
Note	This datasheet PDF includes multiple part numbers: K4D261638K-LC50, K4D261638K. Please refer to the document for exact specifications by model.

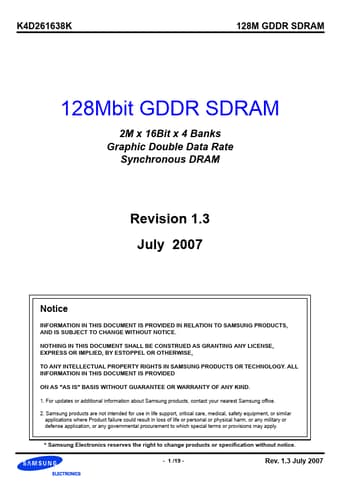

Additional preview pages of the K4D261638K-LC50 datasheet.

Product details

Description

FOR 2M x 16Bit x 4 Bank DDR SDRAM The K4D261638K is 134,217,728 bits of hyper synchronous data rate Dynamic RAM organized as 4 x 2,097,152 words by 16 bits, fabricated with SAMSUNG’s high performance CMOS technology.Synchronous

Features

2.5V + 5% power supply for device operation.
2.5V + 5% power supply for I/O interface.
SSTL_2 compatible inputs/outputs.
4 banks operation.
MRS cycle with address key programs -. Read latency 2,3(clock) -. Burst length (2, 4 and 8) -. Burst type (sequential & interleave).
All inputs except data & DM are sampled at the positive going edge of the system clock.
Differential clock input.
Wrtie-Interrupted by Read Function.
