2SA1860 Datasheet - Sanken electric

2SA1860 Silicon PNP Transistor

LAPT 2SA1860 Silicon PNP Epitaxial Planar Transistor (Complement to type 2SC4886) Application : Audio and General Purpose sAbsolute maximum ratings (Ta=25°C) Symbol Ratings Unit VCBO VCEO VEBO IC IB PC Tj Tstg 150 V 150 V 5 V 14 A 3 A 80(Tc=25°C) W 150 °C 55 to +150 °C sElectrical Characteristics (Ta=25°C) Symbol ICBO IEBO V(BR)CEO hFE VCE(sat) fT COB Conditions VCB= 150V VEB= 5V IC= 25mA VCE.

2SA1860_Sankenelectric.pdf

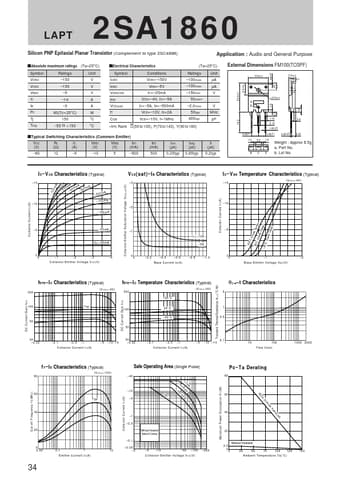

Preview of 2SA1860 PDF

Datasheet Details

Part number:

2SA1860

Manufacturer:

Sanken ↗ electric

File Size:

29.63 KB

Description:

Silicon pnp transistor.
