2SA1864 - PNP Epitaxial Planar Silicon Transistor

2SA1864 Description

Ordering number:EN4719 PNP Epitaxial Planar Silicon Transistor 2SA1864 Muting Circuits, Driver Applications .

2SA1864 Features

* On-chip bias resistors (R1=4.7kΩ, R2=4.7kΩ).
* Very small-sized package making 2SA1864-applied sets small and slim.
* High gain-bandwidth product fT. Package Dimensions unit:mm 2106A [2SA1864] 1 : Base 2 : Emitter 3 : Collector Specifications Absolute Maximum Ratings at Ta = 25˚C

📥 Download Datasheet

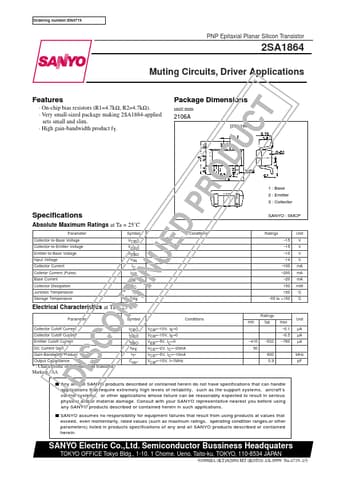

Preview of 2SA1864 PDF
