2SB1570 Datasheet - Sanken electric

2SB1570 Silicon PNP Transistor

(7 0 Ω ) E Darlington sAbsolute maximum ratings (Ta=25°C) Symbol VCBO VCEO VEBO IC IB PC Tj Tstg 2SB1570 160 150 5 12 1 150(Tc=25°C) 150 55 to +150 Unit V V V A A W °C °C 2SB1570 sElectrical Characteristics Symbol ICBO IEBO V(BR)CEO hFE VCE(sat) VBE(sat) fT COB Conditions VCB= 160V VEB= 5V IC= 30mA VCE= 4V, IC= 7A IC= 7A, IB= 7mA IC= 7A, IB= 7mA VCE= 12V, IE=2A .

2SB1570_Sankenelectric.pdf

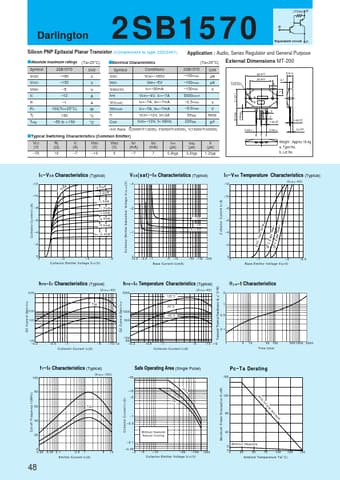

Preview of 2SB1570 PDF

Datasheet Details

Part number:

2SB1570

Manufacturer:

Sanken ↗ electric

File Size:

25.00 KB

Description:

Silicon pnp transistor.
