2SC3853 Datasheet - SavantIC

2SC3853 SILICON POWER TRANSISTOR

*With TO-3PN package *Complement to type 2SA1489 APPLICATIONS *Audio and general purpose PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter Fig.1 simplified outline (TO-3PN) and symbol DESCRIPTION Absolute maximum ratings(Ta= ) SYMBOL VCBO VCEO VEBO IC PC Tj Tstg PARAME.

2SC3853_SavantIC.pdf

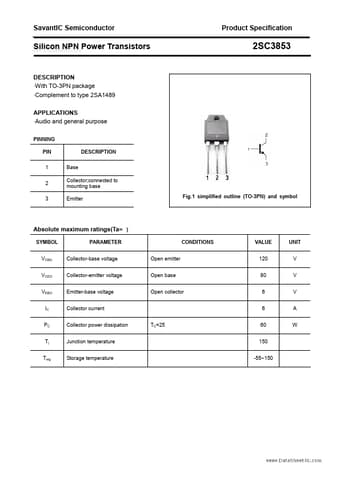

Preview of 2SC3853 PDF
2SC3853 Datasheet Preview Page 2 2SC3853 Datasheet Preview Page 3

Datasheet Details

Part number:

2SC3853

Manufacturer:

SavantIC

File Size:

162.82 KB

Description:

Silicon power transistor.
