2SC3856 Datasheet - SavantIC

SILICON POWER TRANSISTOR

2SC3856 General Description

*With TO-3PN package *Complement to type 2SA1492 APPLICATIONS *Audio and general purpose PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter Fig.1 simplified outline (TO-3PN) and symbol DESCRIPTION Absolute maximum ratings(Ta= ) SYMBOL VCBO VCEO VEBO IC IB PC Tj Tstg PAR.

2SC3856 Datasheet (201.68 KB)

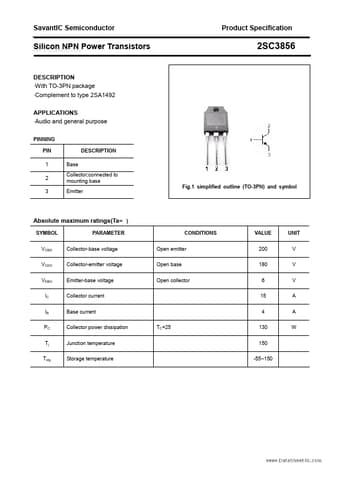

Preview of 2SC3856 PDF

Datasheet Details

Part number:

2SC3856

Manufacturer:

SavantIC

File Size:

201.68 KB

Description:

Silicon power transistor.
