2SD1398 - SILICON POWER TRANSISTOR

📥 Download Datasheet

Preview of 2SD1398 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number 2SD1398
Manufacturer SavantIC
File Size 171.97 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SD1398_SavantIC.pdf

2SD1398 Product details

Description

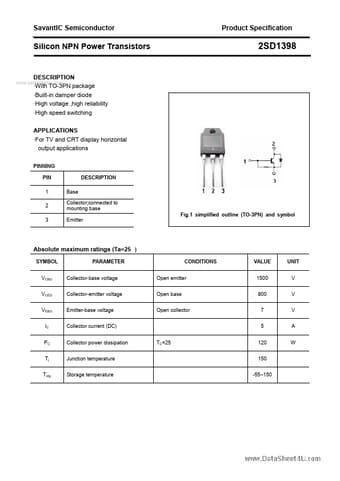

With TO-3PN package Built-in damper diode High voltage ,high reliability High speed switching APPLICATIONS For TV and CRT display horizontal output applications PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter Fig.1 simplified outline (TO-3PN) and symbol DESCRIPTION Absolute maximum ratings (Ta=25 ) SYMBOL VCBO VCEO VEBO IC PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current (DC) Collector power
