2SD1396 - NPN Transistor

2SD1396 Description

isc Silicon NPN Power Transistor .
High Breakdown Voltage- : VCBO= 1500V (Min). High Switching Speed. Built-in Damper Diode. Minimum Lot-to-Lot variations for robust de.

2SD1396 Applications

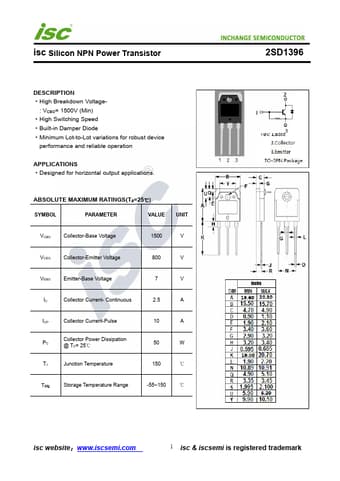

* Designed for horizontal output applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1500 V VCEO Collector-Emitter Voltage 800 V VEBO Emitter-Base Voltage 7 V IC Collector Current- Continuous 2.5 A ICP Collector Current-Pul
