2SD1393 - NPN Transistor

2SD1393 Description

INCHANGE Semiconductor isc Silicon NPN Darlington Power Transistor 2SD1393 .
Collector-Emitter Breakdown Voltage- : V(BR)CEO= 50V(Min). High DC Current Gain : hFE= 1000(Min) @IC= 0. Low Saturation Voltage. 1.

2SD1393 Applications

* Designed for general purpose amplifier and low speed switching applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 50 V VCEO Collector-Emitter Voltage 50 V VEBO Emitter-Base Voltage 6 V IC Collector Current-Continuous 1.5 A

📥 Download Datasheet

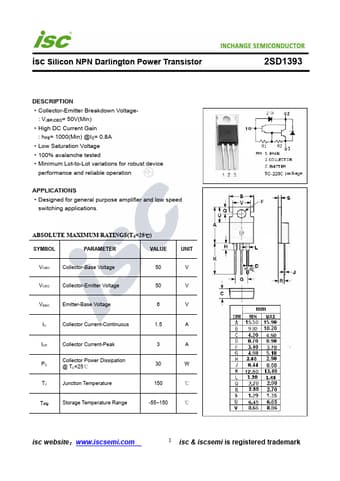

Preview of 2SD1393 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SD1393
Manufacturer
INCHANGE
File Size
200.31 KB
Datasheet
2SD1393-INCHANGE.pdf
Description
NPN Transistor
