2SD1395 - NPN Triple Diffused Planar Silicon Darlington Transistor

Product Overview

Sanyo Semicon Device

Part number	2SD1395
Manufacturer	Sanyo Semicon Device
File Size	78.42 KB
Description	NPN Triple Diffused Planar Silicon Darlington Transistor
Datasheet	2SD1395 Datasheet

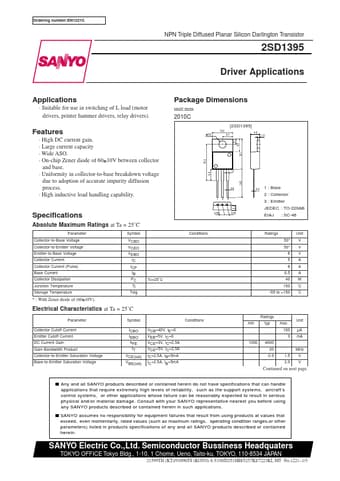

Additional preview pages of the 2SD1395 datasheet.

High DC current gain.
Large current capacity.
Wide ASO.
On-chip Zener diode of 60±10V between collector and base.
Uniformity in collector-to-base breakdown voltage due to adoption of accurate impurity diffusion process.
High inductive load handling capability. Specifications 18.0 5.6 [2SD1395] 10.2 3.6 5.1 4.5 1.3 2.7 6.3 15.1 1.2 0.8 123 2.55 2.55 2.7 14.0 0.4 1 : Base 2 : Collector 3 : Emitter JEDEC : TO-220AB EIAJ : SC-46 Absolute Maximum Ratings a.
