2SD1399 Datasheet - SavantIC

2SD1399 SILICON POWER TRANSISTOR

*With TO-3PN package *Built-in damper diode *High voltage ,high reliability *High speed switching APPLICATIONS *For horizontal output applications PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter Fig.1 simplified outline (TO-3PN) and symbol DESCRIPTION Absolut.

2SD1399_SavantIC.pdf

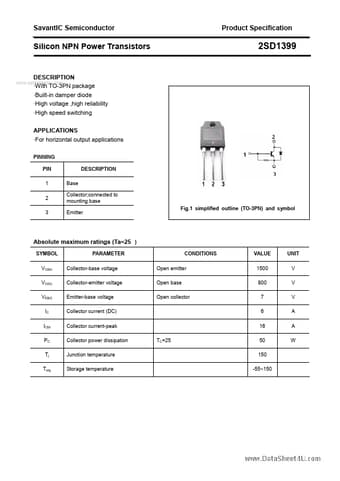

Preview of 2SD1399 PDF
2SD1399 Datasheet Preview Page 2 2SD1399 Datasheet Preview Page 3

Datasheet Details

Part number:

2SD1399

Manufacturer:

SavantIC

File Size:

172.60 KB

Description:

Silicon power transistor.
