2SA1774 PNP Silicon General Purpose Transistor

2SA1774 Description

Elektronische Bauelemente 2SA1774 -0.15A, -60V PNP Silicon General Purpose Transistor RoHS Compliant Product A suffix of “-C” specifies halogen and .

2SA1774 Features

* Low COB. COB=4.0pF Complements the 2SC4617 CLASSIFICATION OF hFE Product-Rank 2SA1774-Q Range 120~270 Marking FQ 2SA1774-R 180~390 FR 2SA1774-S 270~560 FS PACKAGE INFORMATION Package MPQ SOT-523 3K LeaderSize 7’ inch SOT-523 A M 3 Top View CB 12 KL E 3 1 2 D F GH J REF. A B C D

📥 Download Datasheet

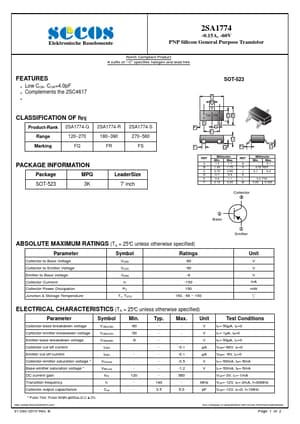

Preview of 2SA1774 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SA1774
Manufacturer
SeCoS
File Size
224.17 KB
Datasheet
2SA1774-SeCoS.pdf
Description
PNP Silicon General Purpose Transistor
