KSH13007A, KSH13007AF, NPN Silicon Power Transistor

KSX13007A Series KSH13007A KSH13007AF NPN Silicon Power Transistor, VCBO= 700V, VCEO= 400V, IC= 8A General .
High voltage, high speed power switching. Suitable for switching regulator, inverters motor controls Features. VCBO = 700.

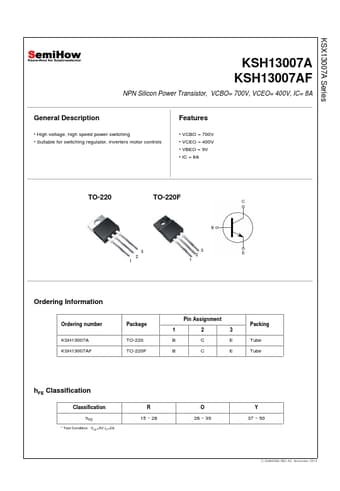

datasheet Preview Page 1 from Datasheet4u.com

KSH13007AF-SemiHow.pdf

KSH13007A Datasheet Preview — This datasheet PDF includes multiple part numbers: KSH13007A, KSH13007AF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

KSH13007A, KSH13007AF

Manufacturer:

SemiHow

File Size:

242.66 KB

Description:

NPN Silicon Power Transistor

Note:

This datasheet PDF includes multiple part numbers: KSH13007A, KSH13007AF.
Please refer to the document for exact specifications by model.

Features

* VCBO = 700V
* VCEO = 400V
* VBEO = 9V
* IC = 8A TO-220 TO-220F 3 2 1 3 2 1 Ordering Information Ordering number KSH13007A KSH13007AF Package TO-220 TO-220F Pin Assignment 123 BCE BCE Packing Tube Tube hFE Classification Classification hFE
* Test Conditi
