KSH13009AF NPN Silicon Power Transistor

KSH13009AF Features

* VCBO = 700V

* VCEO = 400V

* VBEO = 9V

* IC = 12A TO-220 TO-220F TO-3P 3 2 1 3 2 1 3 2 1 Ordering Information Ordering number KSH13009A KSH13009AF KSH13009AL Package TO-220 TO-220F TO-3P Pin Assignment 123 BCE BCE BCE Packing Tube Tube Tube hFE Classificat

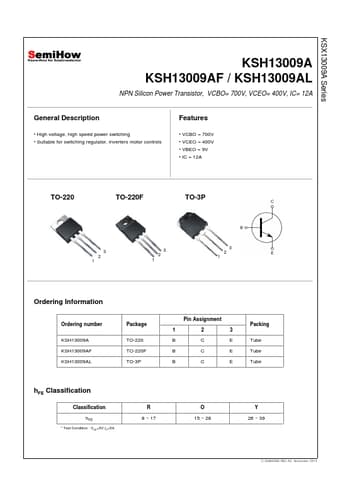

KSH13009A-SemiHow.pdf

KSH13009AF Datasheet Preview — This datasheet PDF includes multiple part numbers: KSH13009AF, KSH13009A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

KSH13009AF, KSH13009A

Manufacturer:

SemiHow

File Size:

178.71 KB

Description:

Npn silicon power transistor.

Note:

This datasheet PDF includes multiple part numbers: KSH13009AF, KSH13009A.
Please refer to the document for exact specifications by model.
