KSH13009AL, KSH13009A, NPN Silicon Power Transistor

KSX13009A Series KSH13009A KSH13009AF / KSH13009AL NPN Silicon Power Transistor, VCBO= 700V, VCEO= 400V, IC= 12A General .
High voltage, high speed power switching. Suitable for switching regulator, inverters motor controls Features. VCBO = 700.

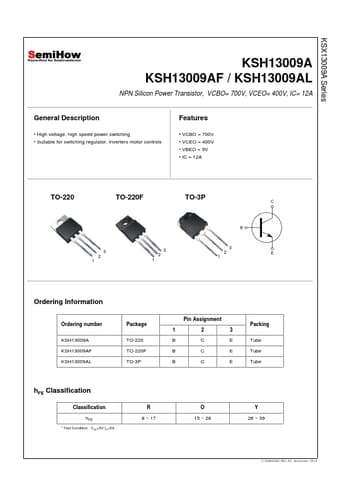

datasheet Preview Page 1 from Datasheet4u.com

KSH13009A-SemiHow.pdf

KSH13009AL Datasheet Preview — This datasheet PDF includes multiple part numbers: KSH13009AL, KSH13009A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

KSH13009AL, KSH13009A

Manufacturer:

SemiHow

File Size:

178.71 KB

Description:

NPN Silicon Power Transistor

Note:

This datasheet PDF includes multiple part numbers: KSH13009AL, KSH13009A.
Please refer to the document for exact specifications by model.

Features

* VCBO = 700V
* VCEO = 400V
* VBEO = 9V
* IC = 12A TO-220 TO-220F TO-3P 3 2 1 3 2 1 3 2 1 Ordering Information Ordering number KSH13009A KSH13009AF KSH13009AL Package TO-220 TO-220F TO-3P Pin Assignment 123 BCE BCE BCE Packing Tube Tube Tube hFE Classificat
