SM13N50S - 500V N-Channel MOSFET

📥 Download Datasheet

SM13N50S Datasheet Preview — Preview of SM13N50S PDF

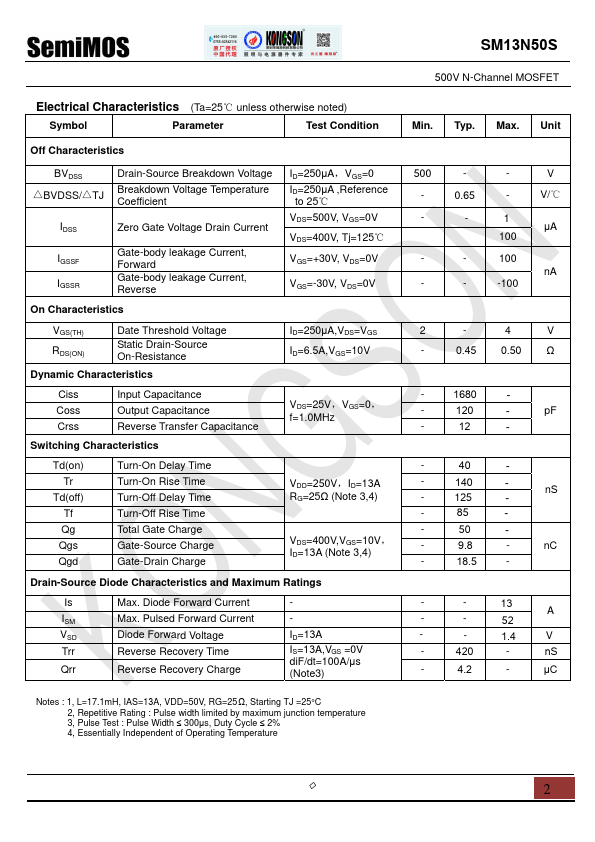

datasheet Preview Page 2

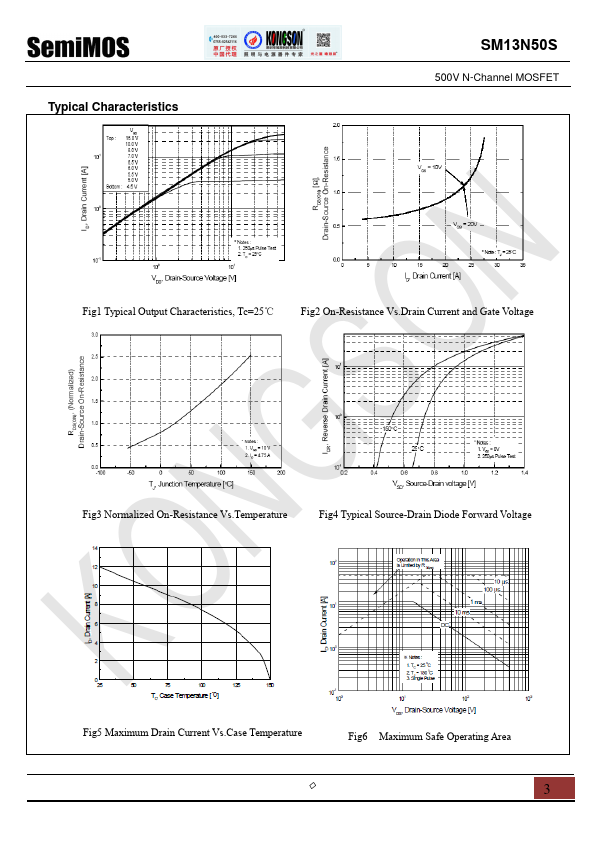

datasheet Preview Page 3

Datasheet Details

Part number	SM13N50S
Manufacturer	SemiMOS
File Size	0.96 MB
Description	500V N-Channel MOSFET
Datasheet	SM13N50S-SemiMOS.pdf

SM13N50S Product details

Features

Low Intrinsic Capacitances.
Excellent Switching Characteristics.
Extended Safe Operating Area.
Unrivalled Gate Charge :Qg= 50nC (Typ. ).
BVDSS=500V,ID=13A.
RDS(on) :0.50Ω (Max) @VG=10V.

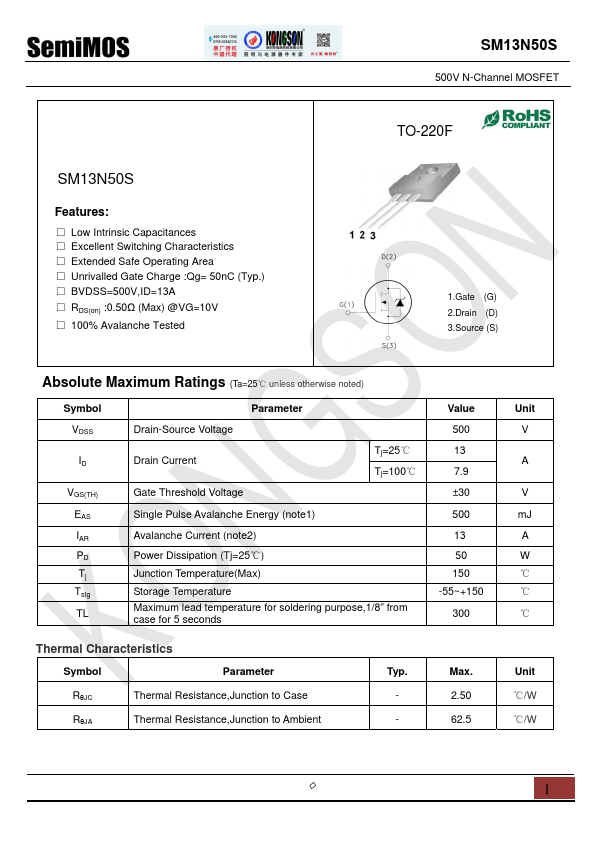

100% Avalanche Tested 1.Gate (G) 2.Drain (D) 3.Source (S) Absolute Maximum Ratings (Ta=25℃ unless otherwise noted) Symbol VDSS ID VGS(TH) EAS IAR PD Tj Tstg TL Parameter Drain-Source Voltage Drain Current Gate Threshold Voltage Tj=25℃ Tj=100℃.
