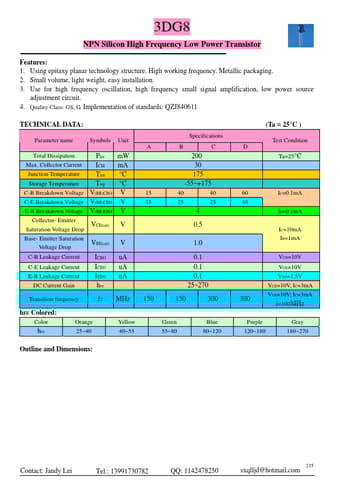

3DG8 Datasheet, Transistor, Shaanxi Qunli Electric

3DG8 Features

• Transistor 1. Using epitaxy planar technology structure. High working frequency. Metallic packaging. 2. Small volume, light weight, easy installation. 3. Use for high frequency oscillation, high

PDF File Details

Part number:

3DG8

Manufacturer:

Shaanxi Qunli Electric

File Size:

31.17kb

Download:

📄 Datasheet

Description:

Npn silicon high frequency low power transistor.

TAGS

3DG8

Shaanxi Qunli Electric
