Q62702-A1028 - Silicon Schottky Diode (Low Barrier diode for detectors up to GHz frequencies)

📥 Download Datasheet

Datasheet preview – Q62702-A1028

Datasheet Details

Part number Q62702-A1028
Manufacturer Siemens Semiconductor Group
File Size 26.35 KB
Description Silicon Schottky Diode (Low Barrier diode for detectors up to GHz frequencies)
Datasheet download datasheet Q62702-A1028 Datasheet
Additional preview pages of the Q62702-A1028 datasheet.

📁 Similar Datasheet

  • Q62702P1137 - Infra-red Emitter 5mm (Siemens)
  • Q62702P1759 - Laser Diode (Osram)
  • Q62705-K110 - Silicon Spreading Resistance Temperature Sensor (Siemens Semiconductor)
  • Q62705-K111 - Silicon Spreading Resistance Temperature Sensor (Siemens Semiconductor)
Other Datasheets by Siemens Semiconductor Group
  • Q62702-A1028 - Silicon Schottky Diode (Low barrier diode for detectors up to GHz frequencies)
  • Q62702-A1025 - Silicon PIN Diode (PIN diode for high speed switching of RF signals Low forward resistance Very low capacitance For frequencies up to 3 GHz)
  • Q62702-A1004 - Silicon Schottky Diode (Low barrier diode for mixer and detectors up to GHz frequencies)
  • Q62702-A1006 - Silicon Crossover Ring Quad Schottky Diode (High barrier diode for double balanced mixers/ phase detectors and modulators)
  • Q62702-A1010 - Silicon PIN Diode (High voltage current controlled RF resistor for RF attenuator and swirches Freqency range above 1 MHz)
  • Q62702-A1017 - Silicon Dual Schottky Diode (High barrier diode for balanced mixers/ phase detectors and modulators)
  • Q62702-A1030 - Silicon Switching Diode Array (For high speed switching applications Common cathode)
  • Q62702-A1031 - Silicon Switching Diode Array (For high speed switching applications Common anode)

Full PDF Text Transcription

Click to expand full text

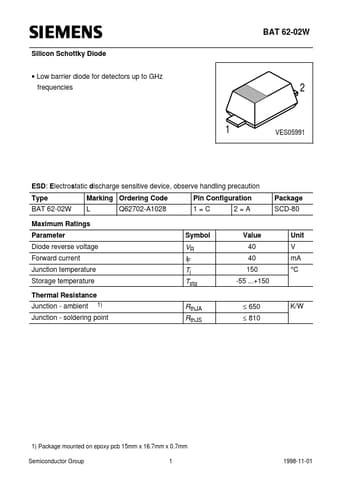

BAT 62-02W Silicon Schottky Diode • Low barrier diode for detectors up to GHz frequencies 2 1 VES05991 ESD: Electrostatic discharge sensitive device, observe handling precaution Type BAT 62-02W Marking Ordering Code L Q62702-A1028 Pin Configuration 1=C 2=A Package SCD-80 Maximum Ratings Parameter Diode reverse voltage Forward current Junction temperature Storage temperature Symbol Value 40 40 150 -55 ...+150 Unit V mA °C VR IF Tj Tstg Thermal Resistance Junction - ambient 1) RthJA RthJS ≤ 650 ≤ 810 K/W Junction - soldering point 1) Package mounted on epoxy pcb 15mm x 16.7mm x 0.7mm Semiconductor Group Semiconductor Group 11 Jul-02-1998 1998-11-01 BAT 62-02W Electrical Characteristics at TA = 25°C, unless otherwise specified. Parameter Symbol Values min.
