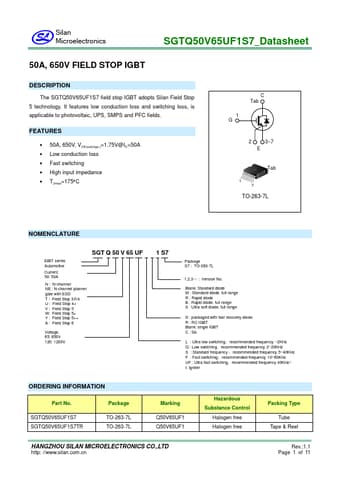

SGTQ50V65UF1S7 Datasheet, Igbt, Silan Microelectronics

SGTQ50V65UF1S7 Features

• Igbt low conduction loss and switching loss, is applicable to photovoltaic, UPS, SMPS and PFC fields. FEATURES
• 50A, 650V, VCE(sat)(typ.)=1.75V@IC=50A
• Low conduction loss

PDF File Details

Part number:

SGTQ50V65UF1S7

Manufacturer:

Silan Microelectronics

File Size:

512.47kb

Download:

📄 Datasheet

Description:

650v field stop igbt. The SGTQ50V65UF1S7 field stop IGBT adopts Silan Field Stop 5 technology. It features low conduction loss and switching loss, is appli

TAGS

SGTQ50V65UF1S7

Silan Microelectronics
