SVF10N70F 700V N-CHANNEL MOSFET

SVF10N70F Description

Silan Microelectronics SVF10N70F/FJ_Datasheet 10A, 700V N-CHANNEL MOSFET GENERAL .
SVF10N70F/FJ is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM high-voltage planar.

SVF10N70F Features

* 10A,700V,RDS(on)(typ. )=0.95@VGS=10V
* Low gate charge
* Low Crss
* Fast switching
* Improved dv/dt capability NOMENCLATURE 2 1 3 1.Gate 2.Drain 3.Source 123 TO-220F-3L 123 TO-220FJ-3L SVFXNEXXX Silan VDMOS Code of F-Cell process Nominal current,using 1 or 2 digits: Exampl

📥 Download Datasheet

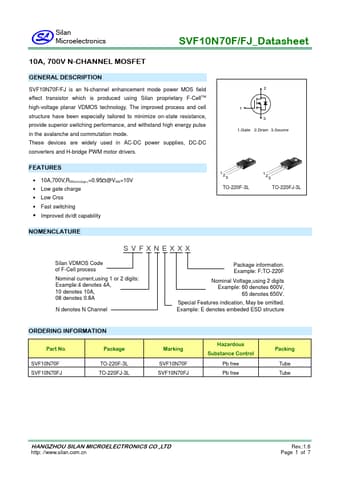

Preview of SVF10N70F PDF
datasheet Preview Page 2 datasheet Preview Page 3
