SVF12N65CFJ - 650V N-CHANNEL MOSFET

Silan Microelectronics

📥 Download Datasheet

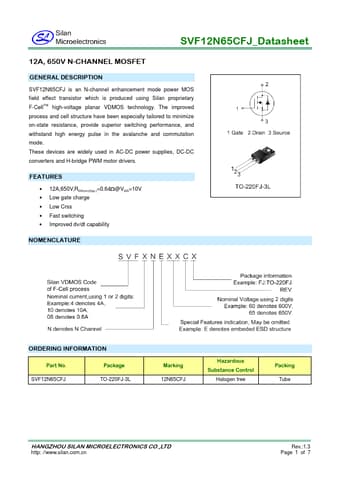

SVF12N65CFJ Datasheet Preview — Preview of SVF12N65CFJ PDF

Datasheet Details

Part number	SVF12N65CFJ
Manufacturer	Silan Microelectronics
File Size	266.50 KB
Description	650V N-CHANNEL MOSFET
Datasheet	SVF12N65CFJ-SilanMicroelectronics.pdf

SVF12N65CFJ Product details

Description

0B SVF12N65CFJ is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM high-voltage planar VDMOS technology.The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode.These devices are widely used in AC-DC power supplies, DC-DC converters and H-bridge PWM motor drivers.

Features

1B.
12A,650V,RDS(on)(typ. )=0.64Ω@VGS=10V.
Low gate charge.
Low Crss.
Fast switching.
Improved dv/dt capability.
