SVF14N25CD

250V N-CHANNEL MOSFET

SVF14N25CD Features

* 2 1 3 1.Gate 2.Drain 3.Source 13 TO-252-2L

* 14A, 250V, RDS(on)(typ.)=0.28@VGS=10V

* Ultra low gate charge

* Low Crss

* Fast switching

* Improved dv/dt capability ORDERING INFORMATION Part No. SVF14N25CDTR Package TO-252-2L Marking 14N25CD Hazardous substance control Halo

SVF14N25CD General Description

SVF14N25CD is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM high-voltage planar VDMOS technology. The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior switching per.

SVF14N25CD Datasheet (299.06 KB)

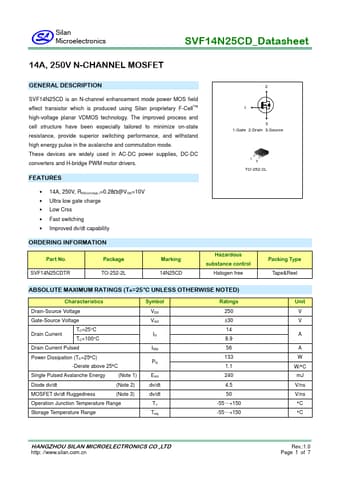

Preview of SVF14N25CD PDF

Datasheet Details

Part number:

SVF14N25CD

Manufacturer:

Silan Microelectronics

File Size:

299.06 KB

Description:

250v n-channel mosfet.
