SVF18N60F

600V N-CHANNEL MOSFET

SVF18N60F Features

* ∗ 18A,600V,RDS(on)（typ）=0.36Ω@VGS=10V ∗ Low gate charge ∗ Low Crss ∗ Fast switching ∗ Improved dv/dt capability NOMENCLATURE ORDERING INFORMATION Part No. SVF18N60F Package TO-220F-3L Marking SVF18N60F Material Pb free Packing Tube HANGZHOU SILAN MICROELECTRONICS CO.,LTD Http://www.silan.com.

SVF18N60F General Description

SVF18N60F is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM structure VDMOS technology. The improved planar stripe cell and the improved guarding ring terminal have been especially tailored to minimize on-state resistance, provide s.

SVF18N60F Datasheet (258.73 KB)

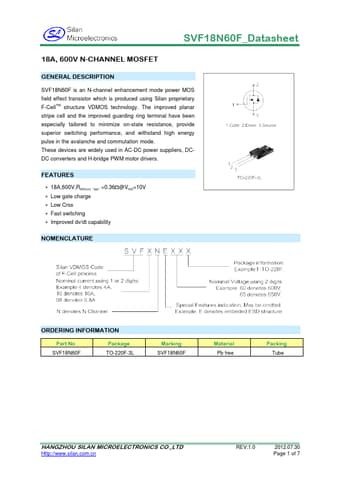

Preview of SVF18N60F PDF

Datasheet Details

Part number:

SVF18N60F

Manufacturer:

Silan Microelectronics

File Size:

258.73 KB

Description:

600v n-channel mosfet.
