SVF18N65T

650V N-CHANNEL MOSFET

SVF18N65T Features

* 1 3 12 3 TO-220-3L 1.Gate 2.Drain 3.Source 12 3 TO-3P 12 3 TO-220F-3L

* 18A,650V,RDS(on)(typ.)=0.48@VGS=10V

* Low gate charge

* Low Crss

* Fast switching

* Improved dv/dt capability ORDERING INFORMATION Part No. SVF18N65F SVF18N65T SVF18N65PN Package TO-220F-3L TO-220-3L

SVF18N65T General Description

2 SVF18N65F/T/PN is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM high-voltage planar VDMOS technology. The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior switc.

SVF18N65T Datasheet (316.37 KB)

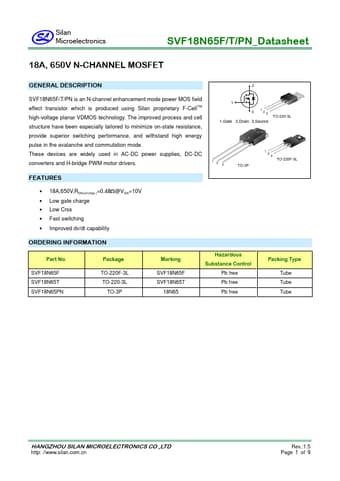

Preview of SVF18N65T PDF

Datasheet Details

Part number:

SVF18N65T

Manufacturer:

Silan Microelectronics

File Size:

316.37 KB

Description:

650v n-channel mosfet.
