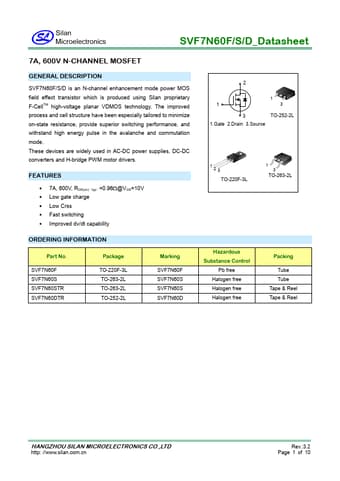

SVF7N60S Datasheet (Silan Microelectronics)

SVF7N60S, 600V N-CHANNEL MOSFET

SVF7N60F/S/D is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM high-voltage planar VDMOS technology.

The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior switching p

SVF7N60S Features

* 7A, 600V, RDS(on)（typ）=0.96@VGS=10V

* Low gate charge

* Low Crss

* Fast switching

* Improved dv/dt capability ORDERING INFORMATION Part No. SVF7N60F SVF7N60S SVF7N60STR SVF7N60DTR Package TO-220F-3L TO-263-2L TO-263-2L TO-252-2L Marking SVF7N60F SVF7N60S SVF7N60S SVF7N60D
