SVGP02R58NL5 Datasheet - Silan Microelectronics

25V N-CHANNEL MOSFET

SVGP02R58NL5 Features

* 294A, 25V, RDS(on)(typ.)=0.48m@VGS=10V

* Low gate charge

* Low Crss

* Fast switching

* Extreme dv/dt rated

* 100% avalanche tested

* Pb-free lead plating

* RoHS compliant S1 S2 S3 G4 8D 7D 6D 5D 8 7 6 5 65 87 4 23 1 1 32 4 PDFN-8-5X6X0.95-1.27 KEY PERFORMAN

SVGP02R58NL5 General Description

SVGP02R58NL5 is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan's LVMOS technology. The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior switching performance. This device is widely used .

SVGP02R58NL5 Datasheet (373.30 KB)

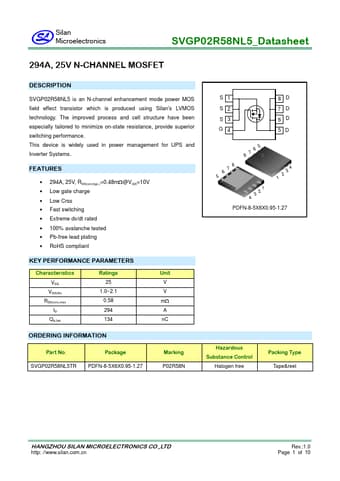

SVGP02R58NL5 Datasheet Preview — Preview of SVGP02R58NL5 PDF

Datasheet Details

Part number:

SVGP02R58NL5

Manufacturer:

Silan Microelectronics

File Size:

373.30 KB

Description:

25v n-channel mosfet.
