28V N-CHANNEL MOSFET

SVGP03100NCS Features

* 10A, 28V, RDS(on)(typ.)=12m@VGS=10V

* Low gate charge

* Low Crss

* Fast switching Sub Drain1 WLCSP-22-2.0x2.0x0.55-0.4 Pin A1 Drain2 Gate Top view 5 4 32 1 D1 D1 D1 D1 D1 A D2 D2 D2 D2 D2 B G Sub C D1 D1 D1 D1 D1 D D2 D2 D2 D2 D2 E Bottom view ORDERING INFORMATION

SVGP03100NCS General Description

SVGP03100NCS is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan's LVMOS technology. The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior switching performance. This device is widely used .

SVGP03100NCS Datasheet (325.29 KB)

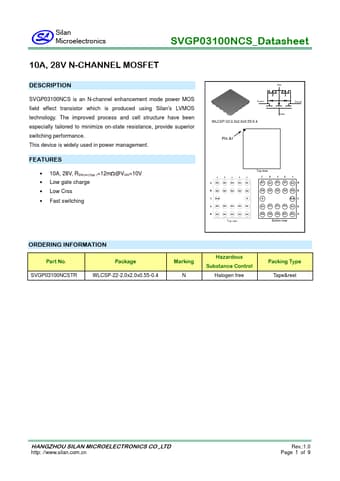

SVGP03100NCS Datasheet Preview — Preview of SVGP03100NCS PDF

Datasheet Details

Part number:

SVGP03100NCS

Manufacturer:

Silan Microelectronics

File Size:

325.29 KB

Description:

28v n-channel mosfet.
