SVGP069R5NSA Datasheet - Silan Microelectronics

60V N-CHANNEL MOSFET

SVGP069R5NSA Features

* 14A, 60V, RDS(on)(typ.)=8m@VGS=10V

* Low gate charge

* Low Crss

* Fast switching

* Improved dv/dt capability 4. Gate 1、2、3. Source 5、6；7、8. Drain 4 5678 12 3 SOP-8-225-1.27 NOMENCLATURE SVGPXXXRXNX Silan Low voltage SGT MOS products Process Version, P denotes PASSIVATIO

SVGP069R5NSA General Description

SVGP069R5NSA is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan's LVMOS technology. The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior switching performance. This device is widely used .

SVGP069R5NSA Datasheet (278.34 KB)

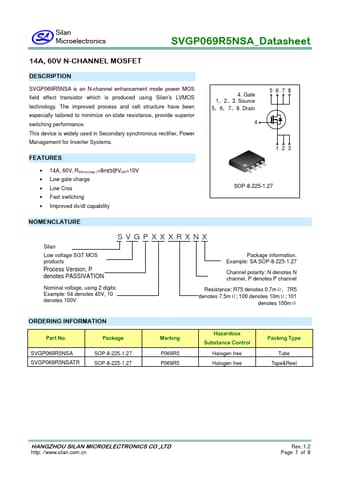

SVGP069R5NSA Datasheet Preview — Preview of SVGP069R5NSA PDF

Datasheet Details

Part number:

SVGP069R5NSA

Manufacturer:

Silan Microelectronics

File Size:

278.34 KB

Description:

60v n-channel mosfet.
