SVS12N80FJH, SVS12N80F 800V DP MOS POWER TRANSISTOR

SVS12N80FJH Description

Silan Microelectronics SVS12N80F/FJ/S/FJH/PN_Datasheet 12A, 800V DP MOS POWER TRANSISTOR .
SVS12N80F/FJ/S/FJH/PN is an N-channel enhancement mode high voltage power MOSFETs produced using Silan’s DP MOS technology.

SVS12N80FJH Features

* 12A,800V, RDS(on)(typ. )=0.37@VGS=10V
* New revolutionary high voltage technology
* Ultra low gate charge
* Periodic avalanche rated
* Extreme dv/dt rated
* High peak current capability 2 1 12 3 3 1.Gate 2.Drain 3.Source TO-220FJ-3L 12 3 12 3 TO-220FJH-3L TO-3P 12 3 T

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SVS12N80FJH, SVS12N80F. Please refer to the document for exact specifications by model.

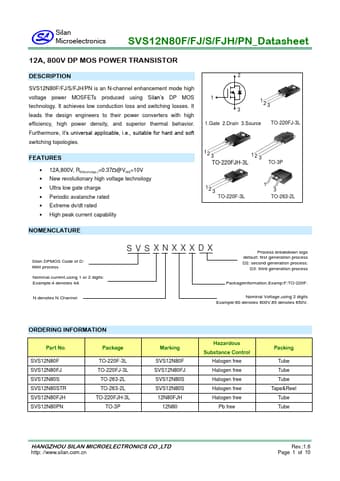

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SVS12N80FJH, SVS12N80F
Manufacturer
Silan Microelectronics
File Size
366.92 KB
Datasheet
SVS12N80F-SilanMicroelectronics.pdf
Description
800V DP MOS POWER TRANSISTOR
Note
This datasheet PDF includes multiple part numbers: SVS12N80FJH, SVS12N80F.
Please refer to the document for exact specifications by model.
