SVS7N65FJD2 Datasheet - Silan Microelectronics

650V SUPER JUNCTION MOS POWER TRANSISTOR

SVS7N65FJD2 Features

* 2 1 3 12 3 TO-251J-3L 1.Gate 2.Drain 3.Source 13 TO-252-2L

* 7A,650V, RDS(on)(typ.)=0.55@VGS=10V

* New revolutionary high voltage technology

* Ultra low gate charge

* Enhanced avalanche capability

* Extreme dv/dt rated

* High peak current capability 12 3 TO-220FJ-3L 1

SVS7N65FJD2 General Description

SVS7N65D(F)(MJ)(FJ)D2 is an N-channel enhancement mode high voltage power MOSFETs produced using Silan’s super junction MOS technology. It achieves low conduction loss and switching losses. It leads the design engineers to their power converters with high efficiency, high power density, and superior.

SVS7N65FJD2 Datasheet (285.21 KB)

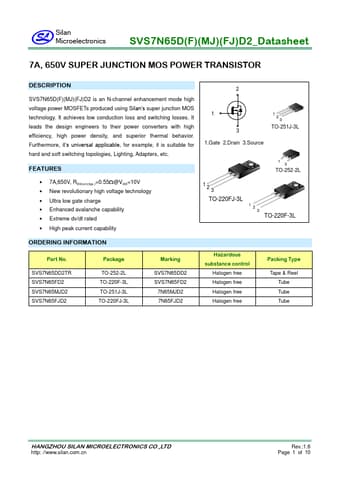

SVS7N65FJD2 Datasheet Preview — Preview of SVS7N65FJD2 PDF

Datasheet Details

Part number:

SVS7N65FJD2

Manufacturer:

Silan Microelectronics

File Size:

285.21 KB

Description:

650v super junction mos power transistor.
