SVT068R5ND, SVT068R5NT - N-CHANNEL MOSFET

Silan Microelectronics

Datasheet Details

Part number	SVT068R5ND, SVT068R5NT
Manufacturer	Silan Microelectronics
File Size	358.71 KB
Description	N-CHANNEL MOSFET
Datasheet	SVT068R5NT-SilanMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: SVT068R5ND, SVT068R5NT. Please refer to the document for exact specifications by model.

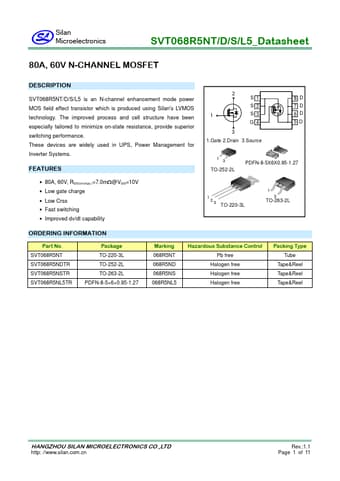

SVT068R5NT/D/S/L5 is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan's LVMOS technology.

80A, 60V, RDS(on)(typ. )=7.0m@VGS=10V.
Low gate charge.
Low Crss.
Fast switching.
Improved dv/dt capability 2 S1 8D S2 7D 1 S3 6D G4 5D 3 1.Gate 2.Drain 3.Source 13 TO-252-2L PDFN-8-5X6X0.95-1.27 1 2 3 TO-220-3L 1 3 TO-263-2L.
