SVT085R5NS, SVT085R5NT Datasheet - Silan Microelectronics

SVT085R5NS 85V N-CHANNEL MOSFET

The SVT085R5NT/S/L5 is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan's LVMOS technology. The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior switching performance. This device is widel.

SVT085R5NS Features

* 120A，85V，RDS(on)(typ.)=4.5m@VGS=10V

* Low gate charge

* Low Crss

* Fast switching

* Improved dv/dt capability 2 S1 8D S2 7D 1 S3 6D G4 5D 3 1.Gate 2.Drain 3.Source 8 765 1 2 34 PDFN-8-5X6X0.95-1.27 1 2 3 TO-220-3L 1 3 TO-263-2L ORDERING INFORMATION Part No. S

SVT085R5NT-SilanMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: SVT085R5NS, SVT085R5NT. Please refer to the document for exact specifications by model.

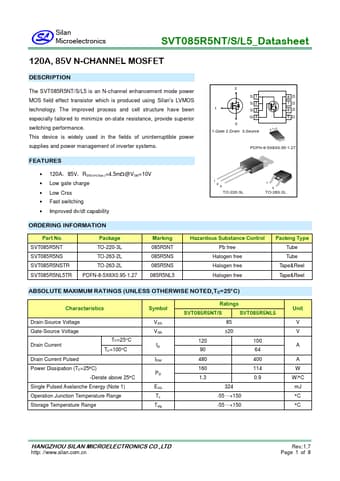

SVT085R5NS Datasheet Preview Page 2 SVT085R5NS Datasheet Preview Page 3

Datasheet Details

Part number:

SVT085R5NS, SVT085R5NT

Manufacturer:

Silan Microelectronics

File Size:

310.93 KB

Description:

85v n-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: SVT085R5NS, SVT085R5NT.
Please refer to the document for exact specifications by model.
