SY8113 Datasheet, Regulator, Silergy

SY8113 Features

• Regulator
• low RDS(ON) for internal switches (top/bottom): 80mΩ/40mΩ
• 4.5-18V input voltage range
• 3A output current capability
• 500 kHz switching frequency

PDF File Details

Part number:

SY8113

Manufacturer:

Silergy

File Size:

1.04MB

Download:

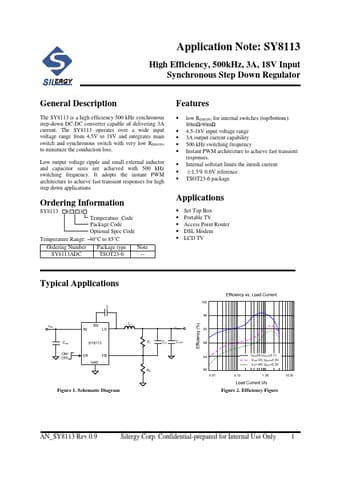

📄 Datasheet

Description:

Synchronous step down regulator. The SY8113 is a high efficiency 500 kHz synchronous step-down DC-DC converter capable of delivering 3A current. The SY8113 operates

SY8113 Application

• Applications Ordering Information SY8113
• (
• )
• Temperature Code Package Code Optional Spec Code Temperature Rang

TAGS

SY8113

Silergy
