SY8113C1

Synchronous Step Down Regulator

SY8113C1 Features

* Low RDS(ON) for Internal Switches (Top/Bottom): 80mΩ/40mΩ

* 4.2-18V Input Voltage Range

* 3A Output Current Capability

* 1.2MHz Switching Frequency Minimize the External Components

* Stable with 10µF COUT and 0.68µH Inductor

* Instant PWM Architecture to Achieve Fast Transi

SY8113C1 General Description

The SY8113C1 is a high efficiency, 1.2MHz synchronous step-down DC/DC regulator capable of delivering up to 3A load current. It can operate over a wide input voltage range from 4.2V to 18V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. The SY8.

SY8113C1 Datasheet (944.97 KB)

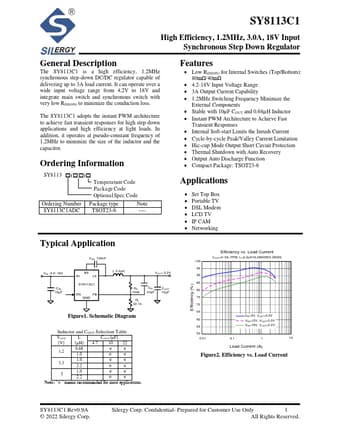

Preview of SY8113C1 PDF

Datasheet Details

Part number:

SY8113C1

Manufacturer:

Silergy

File Size:

944.97 KB

Description:

Synchronous step down regulator.
