SY8113C Datasheet, Regulator, Silergy

SY8113C Features

• Regulator
• low RDS(ON) for internal switches (top/bottom): 80mΩ/40mΩ
• 4.5-18V input voltage range
• 3A output current capability
• 1MHz switching frequency

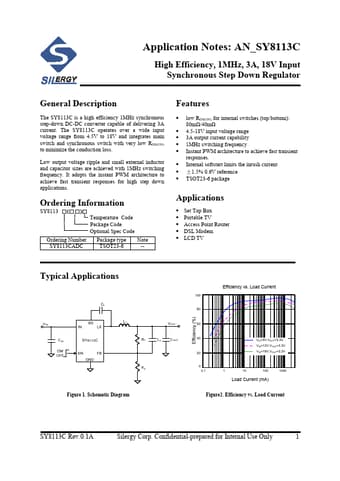

PDF File Details

Part number:

SY8113C

Manufacturer:

Silergy

File Size:

1.34MB

Download:

📄 Datasheet

Description:

Synchronous step down regulator. The SY8113C is a high efficiency 1MHz synchronous step-down DC-DC converter capable of delivering 3A current. The SY8113C operates o

SY8113C Application

• Applications Ordering Information SY8113
• (
• )
• Temperature Code Package Code Optional Spec Code Ordering Number
