SY8113E1 Datasheet - Silergy

Synchronous Step Down Regulator

SY8113E1 Features

* Low RDS(ON) for Internal Switches (Top/Bottom): 80mΩ/40mΩ

* 4.5-18V Input Voltage Range

* 3A Output Current Capability

* 500 kHz Switching Frequency Minimize the External Components

* Stable with 10µF COUT and 2.2µH Inductor

* Instant PWM Architecture to Achieve Fast Transi

SY8113E1 General Description

The SY8113E1 is a high efficiency, 500 kHz synchronous step-down DC/DC regulator capable of delivering up to 3A load current. It can operate over a wide input voltage range from 4.5V to 18V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. The SY.

SY8113E1 Datasheet (1.08 MB)

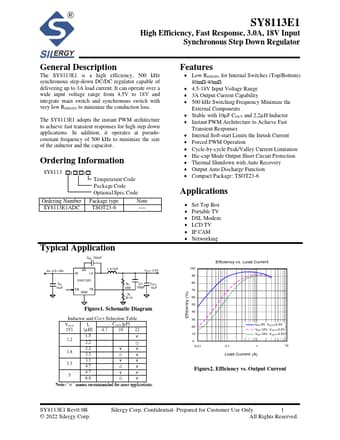

SY8113E1 Datasheet Preview — Preview of SY8113E1 PDF

Datasheet Details

Part number:

SY8113E1

Manufacturer:

Silergy

File Size:

1.08 MB

Description:

Synchronous step down regulator.
