SY8113I Synchronous Step Down Regulator

SY8113I Description

SY8113I General .
The SY8113I is a high efficiency, 500kHz synchronous step-down DC/DC regulator capable of delivering up to 3A load current.

SY8113I Features

* Low RDS(ON) for Internal Switches (Top/Bottom): 80mΩ/40mΩ
* 4.2-18V Input Voltage Range
* 3A Output Current Capability
* 500kHz Switching Frequency Minimize the External Components
* Stable with 10µF COUT and 2.2µH Inductor
* Instant PWM Architecture to Achieve Fast Transie

SY8113I Applications

* and high efficiency at light loads. In addition, it operates at pseudo-constant frequency of 500kHz to minimize the size of the inductor and the capacitor. Ordering Information SY8113
* (
* )
* Tempera ture Code Pa cka ge Code Optional Spec Code Ordering Number Packag

📥 Download Datasheet

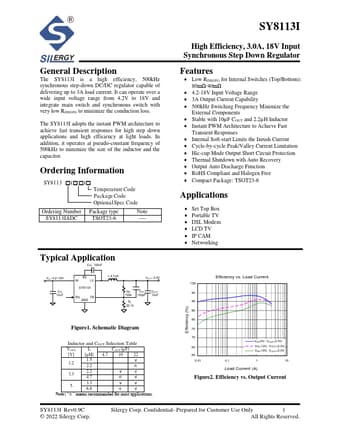

Preview of SY8113I PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SY8113I
Manufacturer
Silergy
File Size
934.92 KB
Datasheet
SY8113I-Silergy.pdf
Description
Synchronous Step Down Regulator
