SKY77500 - FEM

Skyworks Solutions

📥 Download Datasheet

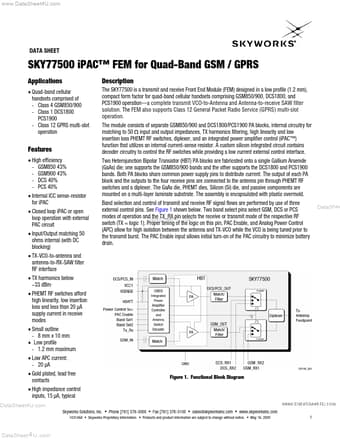

SKY77500 Datasheet Preview — Preview of SKY77500 PDF

Datasheet Details

Part number: SKY77500
Manufacturer: Skyworks Solutions
File Size: 1.29 MB
Datasheet: SKY77500_SkyworksSolutions.pdf
Description: FEM

SKY77500 Product details

Description

The SKY77500 is a transmit and receive Front End Module (FEM) designed in a low profile (1.2 mm), compact form factor for quad-band cellular handsets comprising GSM850/900, DCS1800, and PCS1900 operation a complete transmit VCO-to-Antenna and Antenna-to-receive SAW filter solution.

Features

High efficiency - GSM850 43% - GSM900 43% - DCS 40% - PCS 40%.
Internal ICC sense-resistor for iPAC.
Closed loop iPAC or open loop operation with external PAC circuit.
Input/Output matching 50 ohms internal (with DC blocking).
TX-VCO-to-antenna and antenna-to-RX-SAW filter RF interface.
TX harmonics below.
33 dBm.
PHEMT RF switches afford high linearity, low insertion loss and less than 20 µA supply current in receive m.
