SKY77529 - Front-End Module

Skyworks Solutions

📥 Download Datasheet

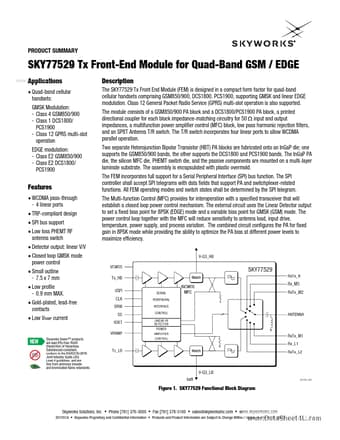

SKY77529 Datasheet Preview — Preview of SKY77529 PDF

Datasheet Details

Part number: SKY77529
Manufacturer: Skyworks Solutions
File Size: 104.00 KB
Datasheet: SKY77529_SkyworksSolutions.pdf
Description: Front-End Module

SKY77529 Product details

Description

The SKY77529 Tx Front End Module (FEM) is designed in a compact form factor for quad-band cellular handsets comprising GSM850/900, DCS1800, PCS1900, supporting GMSK and linear EDGE modulation.

Features

WCDMA pass-through - 4 linear ports.
TRP-compliant design.
SPI bus support.
Low loss PHEMT RF antenna switch.
Detector output: linear V/V.
Closed loop GMSK mode power control.
Small outline - 7.5 x 7 mm.
Low profile - 0.9 mm MAX.
Gold-plated, lead-free contacts.
Low VRAMP current Figure 1. SKY77529 Functional Block Diagram Skyworks Solutions, Inc.
Phone [781] 376-3000.
Fax [781] 376-3.
