SKY77518 - TX-RX iPAC FEM

Datasheet Summary

Description

The SKY77518 is a transmit and receive front-end module (FEM) with Integrated Power Amplifier Control (iPAC™) for dual-band cellular handsets comprising GSM900 and DCS1800 operation.

Features

  • High efficiency - DCS 41% - GSM900 46%.
  • Low transmit supply current - GSM900 1.3 A - DCS1800 0.9 A.
  • Internal ICC sense resistor for iPAC.
  • Closed loop iPAC.
  • 50 Ω matched Input/Output.
  • TX.
  • VCO-to-antenna and antennato-Rx-SAW filter RF interface.
  • TX harmonics below.
  • 33 dBm.
  • PHEMT RF switches afford high linearity, low insertion loss, and less than 20 µA supply current in receive modes.
  • Small outline: 6.

📥 Download Datasheet

Datasheet preview – SKY77518

Datasheet Details

Part number SKY77518
Manufacturer Skyworks
File Size 198.24 KB
Description TX-RX iPAC FEM
Datasheet download datasheet SKY77518 Datasheet
Additional preview pages of the SKY77518 datasheet.

📁 Similar Datasheet

  • SKY77517-21 - TX-RX iPAC FEM (Skyworks Solutions)
  • SKY77519 - TX-RX FEM (Skyworks Solutions)
  • SKY77500 - FEM (Skyworks Solutions)
  • SKY77521 - TX-RX FEM (Skyworks Solutions)
  • SKY77527-21 - Front-End Module (Skyworks Solutions)
  • SKY77528 - Front-End Module (Skyworks Solutions)
  • SKY77529 - Front-End Module (Skyworks Solutions)
  • SKY77531 - TX-RX IPAC FEM Quad-Band GSM/GPRS (Skyworks Solutions)
  • SKY77544 - Tx-Rx FEM (Skyworks Solutions)
  • SKY77546 - Tx-Rx Front-End Module (Skyworks Solutions)
Other Datasheets by Skyworks
  • SKY77518-21 - FEM FOR DUAL-BAND GSM/GPRS
  • SKY73022-11 - High Gain and Linearity Diversity Downconversion Mixer
  • SKY73025 - High Gain and Linearity Diversity Downconversion Mixer
  • SKY73032-11 - High Gain and Linearity Single Downconversion Mixer
  • SKY73033-11 - High Gain and Linearity Single Downconversion Mixer
  • SKY73070 - High Gain and Linearity Single Downconversion Mixer
  • SKY73086 - High Gain and Linearity Diversity Downconversion Mixer
  • SKY73092-459LF51 - 400-6000 MHz Quadrature Modulator

Full PDF Text Transcription

Click to expand full text

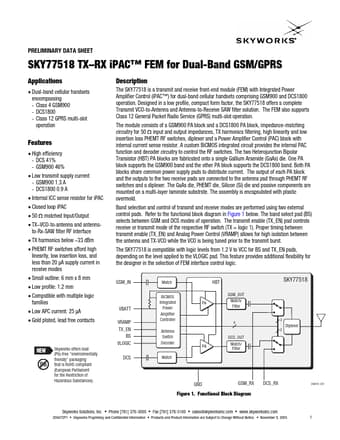

PRELIMINARY DATA SHEET SKY77518 TX–RX iPAC™ FEM for Dual-Band GSM/GPRS Applications • Dual-band cellular handsets encompassing - Class 4 GSM900 - DCS1800 - Class 12 GPRS multi-slot operation Description The SKY77518 is a transmit and receive front-end module (FEM) with Integrated Power Amplifier Control (iPAC™) for dual-band cellular handsets comprising GSM900 and DCS1800 operation. Designed in a low profile, compact form factor, the SKY77518 offers a complete Transmit VCO-to-Antenna and Antenna-to-Receive SAW filter solution. The FEM also supports Class 12 General Packet Radio Service (GPRS) multi-slot operation.
