SKY77517-21 - TX-RX iPAC FEM

Skyworks Solutions

📥 Download Datasheet

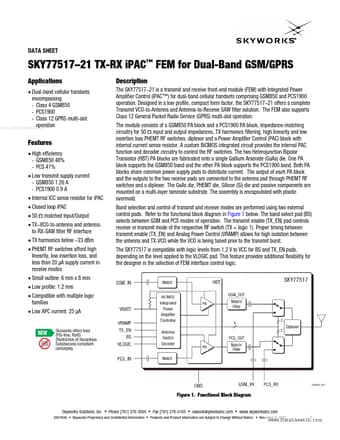

SKY77517-21 Datasheet Preview — Preview of SKY77517-21 PDF

Datasheet Details

Part number: SKY77517-21
Manufacturer: Skyworks Solutions
File Size: 420.39 KB
Datasheet: SKY77517-21_SkyworksSolutions.pdf
Description: TX-RX iPAC FEM

SKY77517-21 Product details

Description

The SKY77517 21 is a transmit and receive front-end module (FEM) with Integrated Power Amplifier Control (iPAC™) for dual-band cellular handsets comprising GSM850 and PCS1900 operation. 21 offers a complete Transmit VCO-to-Antenna and Antenna-to-Receive SAW filter solution.

Features

High efficiency - GSM850 48% - PCS 41%.
Low transmit supply current - GSM850 1.26 A - PCS1900 0.9 A.
Internal ICC sense resistor for iPAC.
Closed loop iPAC.
50 Ω matched Input/Output.
TX.
VCO-to-antenna and antennato-RX-SAW filter RF interface.
TX harmonics below.
33 dBm.
PHEMT RF switches afford high linearity, low insertion loss, and less than 20 μA supply current in receive modes.
Small outline: 6.
