SKY77519 - TX-RX FEM

Skyworks Solutions

📥 Download Datasheet

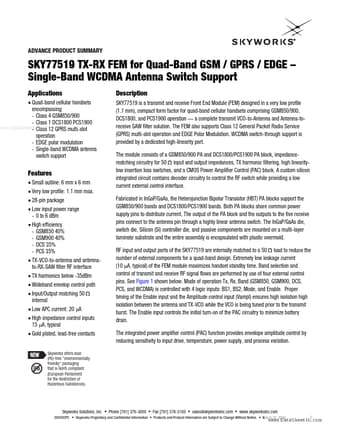

SKY77519 Datasheet Preview — Preview of SKY77519 PDF

Datasheet Details

Part number: SKY77519
Manufacturer: Skyworks Solutions
File Size: 80.06 KB
Datasheet: SKY77519_SkyworksSolutions.pdf
Description: TX-RX FEM

SKY77519 Product details

Description

SKY77519 is a transmit and receive Front End Module (FEM) designed in a very low profile (1.1 mm), compact form factor for quad-band cellular handsets comprising GSM850/900, DCS1800, and PCS1900 operation a complete transmit VCO-to-Antenna and Antenna-toreceive SAW filter solution.

Features

Small outline: 6 mm x 6 mm.
Very low profile: 1.1 mm max.
28-pin package.
Low input power range - 0 to 6 dBm.
High efficiency - GSM850 40% - GSM900 40% - DCS 35% - PCS 35%.
TX-VCO-to-antenna and antennato-RX-SAW filter RF interface.
TX harmonics below -35dBm.
Wideband envelop control path.
Input/Output matching 50 Ω internal.
Low APC current: 20 µA.
High impedance control inputs 15 µA, typical.
