CXA3107N Datasheet, Pagers, Sony Corporation

CXA3107N Features

  • Pagers
  • Low current consumption: 570 µA (typ. at VCC=1.4 V)
  • Low voltage operation: VCC=1.1 to 4.0 V
  • Small package 20-pin SSOP
  • Needless of IF decoupling c

PDF File Details

Part number:

CXA3107N

Manufacturer:

Sony Corporation

File Size:

276.94kb

Download:

📄 Datasheet

Description:

If amplifier for m-ary fsk pagers. The CXA3107N is a low current consumption FM IF amplifier which employs the newest bipolar process. It is suitable for M-ary FSK page

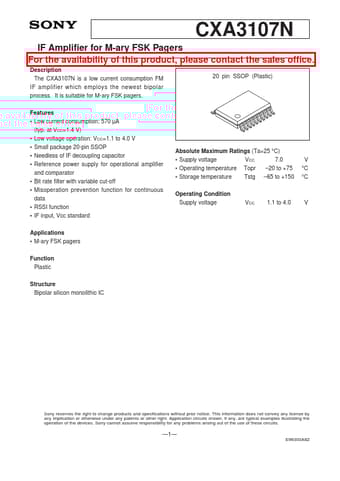

Datasheet Preview: CXA3107N 📥 Download PDF (276.94kb)
Page 2 of CXA3107N Page 3 of CXA3107N

CXA3107N Application

  • Applications
  • M-ary FSK pagers Function Plastic Structure Bipolar silicon monolithic IC 20 pin SSOP (Plastic) Absolute Maximum Ratings (Ta
