CXA3108AQ

L-band Down Converter IC with On-Chip PLL

CXA3108AQ Features

* On-chip tuning PLL

* Supports 2.65 GHz oscillator frequency

* Noise figure: 12.5 dB typ. (for IF full gain)

* IF AGC gain variation: 46 dB typ. Wide band IF AGC amplifier (60 to 500 MHz) Two IF outputs PLL supports I2C protoco

CXA3108AQ General Description

The CXA3108AQ is a monolithic IC that downconverts the L-band (1 to 2 GHz) 1st IF to 2nd IF for satellite broadcast receivers. It integrates a local oscillator circuit, double-balanced mixer, IF AGC amplifier and tuning PLL onto a single chip. This IC supports both analog and digital satellite broad.

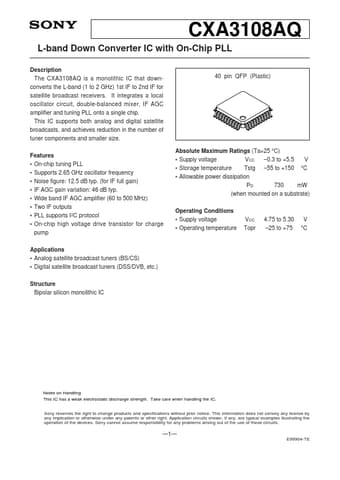

CXA3108AQ Datasheet (257.45 KB)

Preview of CXA3108AQ PDF

Datasheet Details

Part number:

CXA3108AQ

Manufacturer:

Sony Corporation

File Size:

257.45 KB

Description:

L-band down converter ic with on-chip pll.
