CXA3205N

All Band TV Tuner IC with On-chip PLL

Sony Corporation

CXA3205N Features

* Low noise figure

* Low power consumption (5 V, 58 mA typ.)

* On-chip tuning PLL (I2C bus format)

* Selection of frequency steps 31.25 kHz, 50 kHz and 62.5 kHz

* On-chip 4-output band switch

* IF balanced output Applications

* TV tuners

CXA3205N General Description

The CXA3205N is a monolithic TV tuner IC which integrates local oscillator and mixer circuits for VHF band, local oscillator and mixer circuits for UHF band, an IF amplifier and a tuning PLL onto a single chip, enabling further miniaturization of the tuner. The PLL on this IC supports the I2C bus fo.

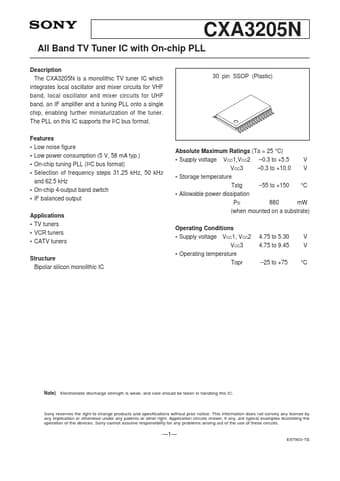

CXA3205N Datasheet (320.79 KB)

CXA3205N Datasheet Preview — Preview of CXA3205N PDF

Datasheet Details

Part number:

CXA3205N

Manufacturer:

Sony Corporation

File Size:

320.79 KB

Description:

All band tv tuner ic with on-chip pll.
