CXA3218N Datasheet - Sony Corporation

CXA3218N FM Demodulator for BS/CS

CXA3218N Features

* Built-in IF AGC

* Excellent DG/DP characteristics

* Keyed AFT input pin to support MUSE reception

* 1st AGC control output pin

* Single 5 V power supply operation Applications PAL/NTSC system BS tuners, etc. Structure Bipolar silicon monolithic IC 30P pin SS

CXA3218N_SonyCorporation.pdf

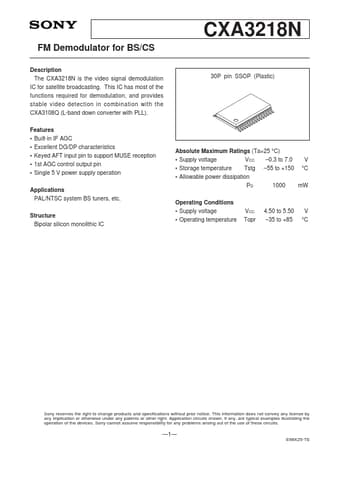

Preview of CXA3218N PDF
CXA3218N Datasheet Preview Page 2 CXA3218N Datasheet Preview Page 3

Datasheet Details

Part number:

CXA3218N

Manufacturer:

Sony Corporation

File Size:

241.17 KB

Description:

Fm demodulator for bs/cs.
