CXA3219M - UHF-Band RF Modulator for VCR

Sony Corporation

📥 Download Datasheet

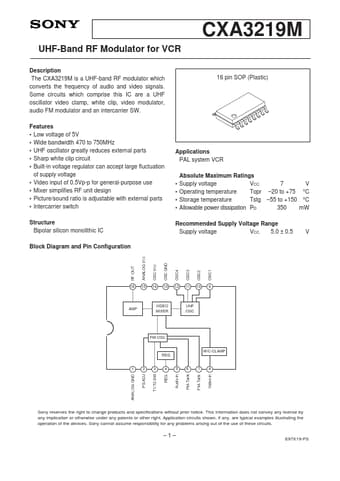

CXA3219M Datasheet Preview — Preview of CXA3219M PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: CXA3219M
Manufacturer: Sony Corporation
File Size: 205.53 KB
Datasheet: CXA3219M_SonyCorporation.pdf
Description: UHF-Band RF Modulator for VCR

CXA3219M Product details

Description

The CXA3219M is a UHF-band RF modulator which converts the frequency of audio and video signals.

Features

Low voltage of 5V.
Wide bandwidth 470 to 750MHz.
UHF oscillator greatly reduces external parts.
Sharp white clip circuit.
Built-in voltage regulator can accept large fluctuation of supply voltage.
Video input of 0.5Vp-p for general-purpose use.
Mixer simplifies RF unit design.
Picture/sound ratio is adjustable with external parts.
Intercarrier switch Structure Bipolar silicon monolithic IC Block Diagram and Pin Con.
